Question 1

SLPaper 2

The hydrogen atom can be modelled using the Bohr model.

Calculate the wavelength of light emitted when an electron transitions from the $n=5$ level to the $n=2$ level.

[3]

Sketch an energy level diagram showing this transition and label all levels from $n = 1$ to $n = 5$ .

[2]

Explain, using the Bohr model, why the energy levels become closer together at higher values of $n$ .

[2]

Question 2

SLPaper 1A

In the Bohr model, which of the following best describes the motion of electrons?

Question 3

SLPaper 1A

Which of the following is a feature of both the Rutherford model and the Bohr model?

Question 4

SLPaper 1A

Which of the following cannot be deduced from the results of the Geiger-Marsden-Rutherford experiment?

Question 5

SLPaper 1A

Electrons transition between energy states for $n=1,2,3,4,5$ in an atom. Some data regarding the photons emitted in the transitions is shown below.

Transition	Wavelength of Emitted Photon
5 → 1	$240\ \mathrm{nm}$
4 → 3	$710\ \mathrm{nm}$
3 → 1	$280\ \mathrm{nm}$
5 → 2	$310\ \mathrm{nm}$

What is the wavelength of the photon emitted in the transition between $n=3$ and $n=2$ ?

Question 6

HLPaper 1A

A hydrogen atom absorbs a photon of energy $12.1\ \mathrm{eV}$ . To which energy level is the electron most likely excited?

Question 7

HLPaper 1A

Which experiment provided direct evidence for the wave nature of electrons?

Question 8

HLPaper 2

Hydrogen atoms are confined in a chamber, with their electrons in the ground state. An electric current is run through the chamber which excites the electrons inside to the third excited state.

Draw a diagram to represent this change.

[2]

The current is turned off and the electrons are allowed to fall back down to lower energy levels.

Outline what is meant by an emission spectrum.

[2]

State the number of discrete lines in the emission spectrum produced by the hydrogen gas.

[1]

For a single hydrogen atom with an electron in the third excited state, state the number of ways it can return to the ground state by releasing $2$ photons.

[1]

For a system of four of the hydrogen atoms $A$ , $B$ , $C$ , and $D$ , explain why there are $8$ ways for exactly $11$ photons to be emitted in the transition back to the ground state.

[3]

Question 9

HLPaper 2

In a head-on scattering experiment, an alpha particle with kinetic energy of 6.0 MeV is directed towards a gold nucleus ( $Z=79$ ).

Calculate the distance of closest approach for the alpha particle to the gold nucleus.

[3]

Explain why the alpha particle does not enter the nucleus. Use $k=9.0 \times 10^9 \mathrm{Nm}^2 / \mathrm{C}^2, e=$ $1.6 \times 10^{-19} \mathrm{C}$ , and the charge of the alpha particle as $2 e$ .

[2]

Question 10

SLPaper 1A

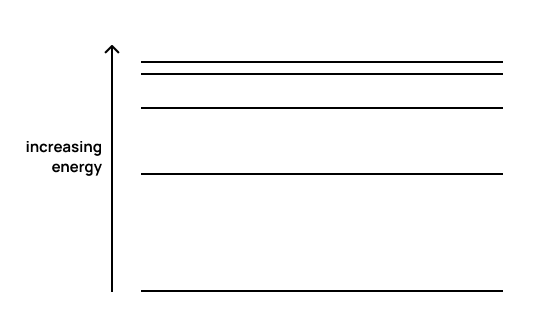

The energy-level diagram for an atom that has five energy states is shown below.

What is the number of different wavelengths in the emission spectrum of this atom?
